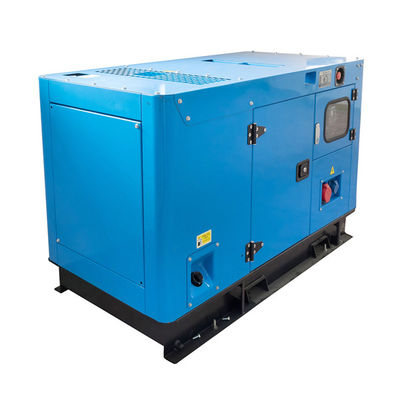

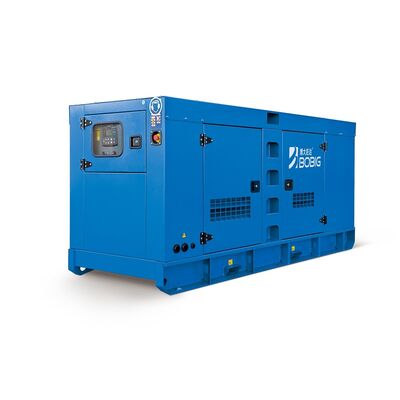

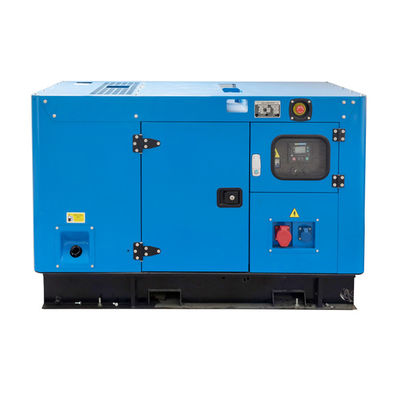

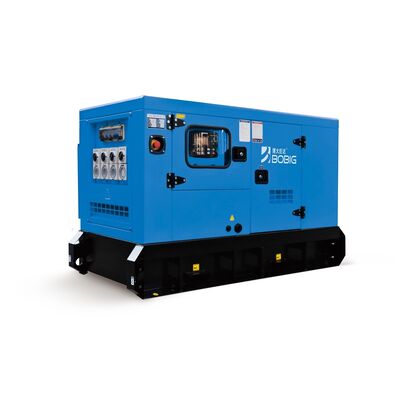

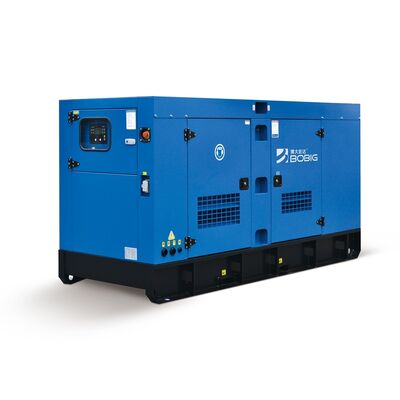

Our 10kW 13KVA BOBIG YANGDONG diesel generator (Model: YD385D) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.
Rated Power: 10kW (13KVA) - meets power needs for various industrial, commercial, and residential applications with stable and efficient prime power output.
Frequency: 50Hz standard frequency suitable for most electrical equipment.
Engine Model: YD385D YANGDONG engine with high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth, consistent power supply with minimal wear.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 13 | 14 |
| Power Rating (kW) | 10 | 11 |
| Frequency (Hz) | 50 | |
| Engine Model | YD385D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload capability.
| Engine Model & Manufacturer | YD385D (YANGDONG) |
|---|---|
| Engine Model | YD385D |
| No. of Cylinders | 3 |
| Injection Type | Direct |
| Aspiration | Natural |
| Configuration | Vertical |
| Bore | 85 mm |
| Stroke | 90 mm |
| Compression Ratio | 18 |
| Displacement | 1.532 L |
| Dry Engine Weight | 175 kg |
| Dimension (L*W*H) | 587*474*615 |
| The Flywheel Shell Interface | SAE4 |
| Governed Engine Speed | 1500 |
| Continuous Power without Fans | 11 |
| Standby Power | 12 |
| Alternator Specifications | |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-164C |
| Alternator Rated Power | 10kw/13kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |

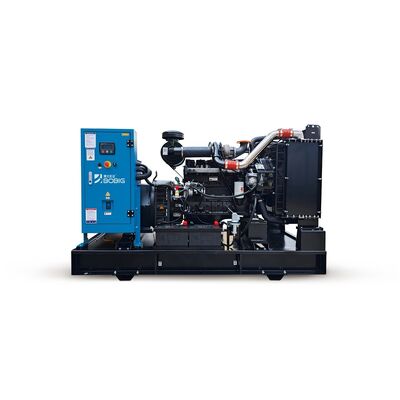

| Dimension and Weight | BY14 (Open Type) | BY14S (Silent Type) |
|---|---|---|
| Length (L) mm | 1150 | 1750 |
| Width (W) mm | 610 | 850 |
| Height (H) mm | 1100 | 1030 |
| Tank Capacity (L) | 23 | 23 |
Plywood case, 10-15 working days after receiving customer's order.
We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.
BOBIG products have a guarantee for one year or 1000 hours, whichever comes first from the ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production quality or raw material issues. After expiration, we provide cost-based spare parts maintenance.
We offer a comprehensive warranty for our diesel generators. Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services to ensure your peace of mind.
Our MOQ is only 1 set. Payment method is usually 30% T/T as deposit, 70% balance T/T before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery period is normally 10-15 working days after receiving customer's deposit.
Fuzhou port, Fujian province or as customer request.
We can provide regular engine's air filter, water filter, fuel filter, oil filter for self-maintenance.
Yes, we can offer parts at any time, not limited to warranty period. Parts are usually sent out within 3-5 days.
Yes, all specifications can be customized according to your needs.
We welcome distributors worldwide. We can issue authority certificates and sign agreements accordingly.
