| General information | Prime power | Standby power |
|---|---|---|
| Rated Power (kVA) | 250 | 275 |
| Power Rating (kW) | 200 | 220 |
| Frequency (Hz) | 50 | |
| Engine Model | SC9D340D2 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated voltage (V) | 400/230 (According to customer requirements) | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |

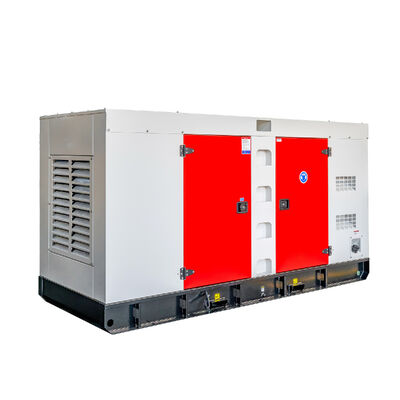

| Model | BSD275 (Open type) | BSD275S (Silent type) |
|---|---|---|
| Length (L) mm | 2600 | 3550 |
| Width (W) mm | 1000 | 1220 |
| Height (H) mm | 1850 | 1950 |
| Tank capacity (L) | 460 | 460 |
| Engine model & manufacturer | SC9D340D2 (SDEC) |
| Engine Model | SC9D340D2 |
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler |
| Combustion type | Direct injection |
| Cylinder Type | wet cylinder liner |
| Number of cylinders | 6 |
| Bore × stroke | 114 × 144 mm |
| Displacement | 8.82 lit. |
| Compression ratio | 16.5 : 1 |
| Firing order | 1-5-3-6-2-4 |
| fuel injection advance angle | 8.5°BTDC |
| Dry weight | 900 kg |
| Dimension | 1493×792×1309mm |
| Rotation | CCW viewed from flywheel |
| Fly wheel housing | SAE 2# |
| Fly wheel | SAE 11.5# (number of teeth: 125) |
| Injection pump | Longkou in-line "P" type |
| Governor | Electric type |
| Feed pump | Mechanical type |
| Injection nozzle | Multi hole type |
| Heavy duty diesel engine | Starter battery (with lead acid) including rack and cables |
| Anti-vibration mount | Flexible fuel connection hoses |
| Replaceable fuel filter, oil filter & air filter | Exhaust silencer and bellows |
| Cooling radiator and fan | Operation manuals and circuit diagram documents |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274K |
| Alternator Rated Power | 200kw/250kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
