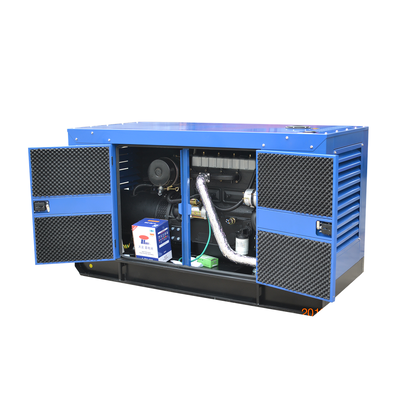

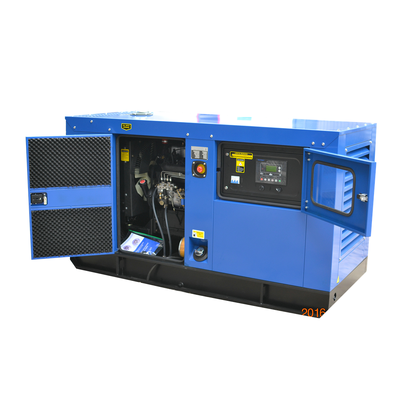

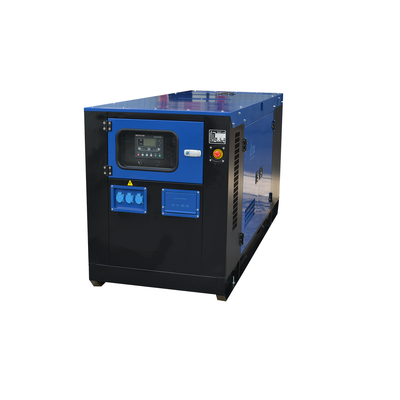

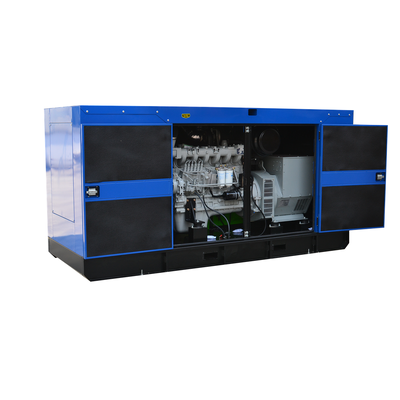

Baudouin 33KVA-50KVA Digital Panel Super Silent Diesel Genset
Baudouin 36KW Water Cooled Diesel Generator - Model 4M06G50/5 36kW 45kVA. A dependable power generator for industrial and commercial environments. We offer various power configurations that can be customized according to your needs.
Please feel free to contact us!
Technical Specifications
| General Information | Prime Power | Standby Power |
|---|
| Rated Power (kVA) | 45 | 50 |
| Power Rating (kW) | 36 | 40 |
| Frequency (Hz) | 50 |
| Engine Model | 4M06G50/5 |
| Engine Speed (RPM) | 1500 |
| Phase | 3 |
| PF | 0.8 |
| Control System | Digital |
| Rated Voltage (V) | 400/230 (According to customer requirements) |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load |
PRP - Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP - The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
| Model | BBDA50 (Open Type) | BBDA50S (Silent Type) |
|---|
| Length (L) mm | 1650 | 2500 |
| Width (W) mm | 750 | 930 |
| Height (H) mm | 1240 | 1200 |
| Tank Capacity (L) | 83 | 83 |
Engine Specifications
| Engine Model & Manufacturer | 4M06G50/5 (BAUDOUIN) |
| Engine Model | 4M06G50/5 |
| N° of Cylinders / Valves | 4/8 |
| Cylinders Arrangement | In line |
| Bore x Stroke (mm) | 89 × 92 |
| Displacement (L) | 2.3 |
| Thermodynamic Cycle | Diesel 4 stroke |
| Firing Order | 1-3-4-2 |
| Mean Piston Speed (m/s) | 4.6 |
| BMEP @ ESP (Bar) | 16.70 |
| Cooling System | Liquid (water + 50% antifreeze) |
| Injection System | Direct |
| Fuel System | Mechanical Pump |
| Aspiration | Turbocharged and Aftercooled |
| Compression Ratio | 17.5 : 1 |
| Flywheel Housing | SAE 3 |
| Flywheel | 11.5" |
| Rotation Viewed from Flywheel | Counter Clockwise |
| Allowed Static Bending Moment | TBD |
| N° of Teeth on Flywheel Ring Gear | 128 |
| Inertia of Flywheel (kg•m²) | 0.47 |
| Inertia of Crankshaft (kg•m²) | 0.039 |
| Emission Standard | N/A |
| Overall Dimensions with Radiator (L×W×H mm) | 1185 × 684 × 797 |
| Engine Dry Weight without Radiator (kg) | 248.4 |
| Engine Dry Weight with Radiator (kg) | 286 |
| Engine Wet Weight with Radiator (kg) | 305 |
Alternator Specifications
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224C |
| Alternator Rated Power | 36kw/45kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
